1sn Standard Gates Aeroflex Hydraulic Ce 10sets Free Dies Hose Crimping Machine

FOB Reference Price:Get Latest Price
US $1,450-1,800 / Sets | 1 Set/Sets hydraulic hose crimper (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
QTD
Model Number:
DX68
Voltage:
380V/220V
Power(W):
3KW/2.2KW
Dimension(L*W*H):
780*510*850mm
Weight:
280kgs
Certification:
ISO
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
adcantage:
easy to learn and easy to operate
place of origin:
Tianjin,china
color:
blue
quality:
be fully up to chinese export standard
crimping range:
6-51mm
weight:
280kgs
rated pressure:
31.5mpa
brand name:
QTD
dies:
10 sets
packing:
fumigation wooden case
SupplyAbility
SupplyAbility:
200 Set/Sets per Month hydraulic hose crimper
Packaging & Delivery
Packaging Details
wooden case or as your require
Port
tianjin or any port in china
Lead Time :
within 7 days after receiving your deposit

1sn Standard Gates Aeroflex Hydraulic Ce 10sets Free Dies Hose Crimping Machine



1. Put the hose into the crimping head .(The first crimp turn the key to manual position)

2. Setting the crimping length one time.(General put the hose and fitting in middle of crimping head)

3. Press the lock button then machine will crimping still it stopped .

4. Turn the function key to semi-automatic position indicator light bright , put hose and fitting into crimping head press the crimping button or step pedal switch one time, the piston will moving forward, the die seat fold, when it reach the preadjustment scale mark, it will opening and return to the first position, waiting for the next operation.





Crimping range1/4-2”
Rated pressure31.5Mpa
The largest crimping pressure449T
Ruler precision0.02mm
Oil pump out-let quantity

5ml/rad/3kw  (380V)

2.5ml/rad/2.2kw  (220V)

Weight300kg
Stoke850 stoke/hour
Dimension870mm*780mm*860mm
Die10 sets





Matters need attention of hydraulic hose crimper china:

1.motor start:pay attention to the direction of rotation of the motor and pump rotation direction or arrow direction.

2.before the operation:check the hydraulic oil tank and oil level matching.rection or arrow direction.

3.normal operation:the first 30 minutes of running after normal use.

4.hydraulic oil:normally we use mobile #46 Hydraulic oil, if your country do not have this brand you can buy the better one, if the hydraulic oil clean enough, it is good to the machine.

5.system failure: system failure,don not blindly processing,in accordance with the "first easy hind difficult,after the first" sequence analysis or find professional repair personnel to solve problems.

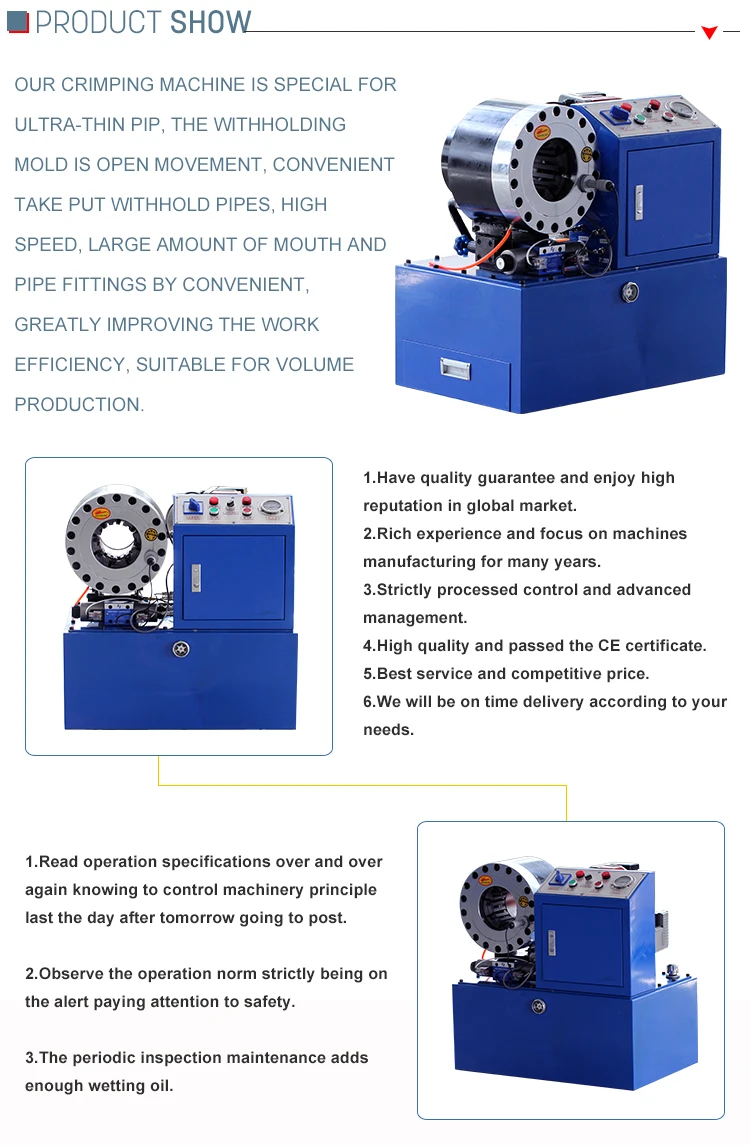

Safety tipes of hydraulic hose crimper china:

1.Read operation specifications over and over again knowing to control machinery principle last the day after tomorrow going to post.

2.Observe the operation norm strictly being on the alert paying attention to safety.

3.The periodic inspection maintenance adds enough wetting oil.



Q1: Are you a manufacturer or trading company?
  A1: We are a specialized manufacturer.
Q2: How about discount?
  A2: Price is based on products and order quantity.
Q3: How about your after-sales service?
  A3: As a manufacturer, we offer promote technology support for all problems and questions.
Q4: Where is your factory located in?
  A4: Our factory is located in tianjin city,China.
Q5: How does your company control the quality?
  A5: Quality first. In order to guarantee high quality for our products, TY always makes a serious inspection for all products and raw materials in strict procedure.
Q6:How to order the products?
  A6:Send the inquiry with detail item desciption or with Model number.
Q7:What is your terms of delivery?
  A7:We accept FOB,CIF etc.you can choose one which is more convenient.
